Grandstream GCC6010W Networking Gateway
Key Features
Brand: Grandstream
features (PBX Upgrade options available)
Built-in firewall provides anti-virus, layer 3-7 IDS/IPS, DPI, SSL detection, and more
Built-in VPN router supports 2.5Gbps or 3Gbps to allow easy remote access
Built-in network switch with 5 or 10 Gigabit ports, 4x PoE out ports, and 2x 2.5 SFP ports (GCC6010/GCC6011)
Built-in dual-band Wi-Fi 6 AP with 2×2 MIMO technology (GCC6010W)
Easily configure, deploy, and manage all Grandstream endpoints from one interface
Provides advanced security protection with encrypted traffic, secure boot, unique security certificates, and more
Managed through the cloud (GDMS), mobile app, local WEB UI, SSH, and SNMP
Multiple WAN ports with load balancing and failover to maximize connection reliability
1 Year Warranty
Grandstream GCC6010W Networking Gateway
The Grandstream GCC6010W is an all-in-one converged wireless networking gateway designed to unify corporate communications, network security, routing infrastructure, and wireless connectivity into a single desktop unit. This hardware combines a high-performance router, a next-generation firewall, an IP PBX communication server, and a dual-band Wi-Fi 6 access point. It functions as a centralized hardware node optimized for wireless-first small-to-medium enterprises and branch offices, eliminating the need for separate routers, telephone servers, firewalls, and standalone wireless access points.
Hardware and Performance Specifications
The physical layout houses processing units capable of executing data routing, wireless radio distributions, deep packet inspection, and real-time voice transcoding simultaneously.
Processing Power and System Memory
-
- System Memory: Equipped with 2 Gigabytes of RAM for managing concurrent connection data.
- Storage Capacity: Features 32 Gigabytes of built-in eMMC flash storage for system firmware, security logs, and telephone data.

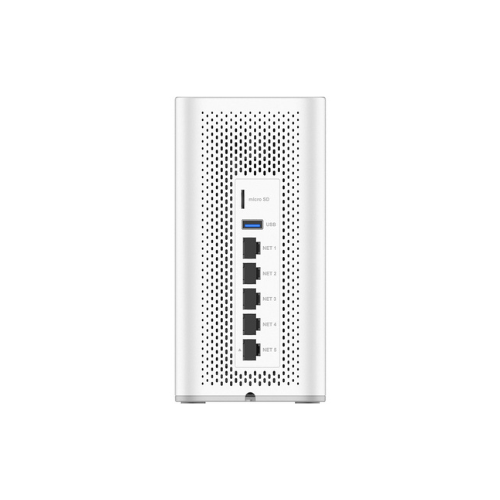

Physical Port Array and Interface Layout
The interface panel contains physical networking ports that can be dynamically reassigned based on changing deployment infrastructure needs.
-
- Network Interfaces: Built with 5 Gigabit RJ45 Ethernet ports.
- Port Reassignment: All 5 ports are WAN or LAN configurable, allowing up to 3 simultaneous WAN connections for load balancing and failover routing.
- Peripheral Access: Includes 1 Micro SD slot and 1 USB 3.0 port for external storage mapping, local database management, or system data expansion.
Integrated Wi-Fi 6 Access Point Capabilities
Unlike the wired versions in the same series, this specific gateway incorporates internal antennas and wireless radios to deliver office-wide high-speed wireless data transmission
-
- Wireless Standards: Supports dual-band IEEE 802.11a b g n ac ax Wi-Fi 6 protocols.
- Antenna Framework: Utilizes 2×2 MIMO technology to maintain data speeds across multiple wireless client connections.
- Central Wireless Management: Functions as a master wireless controller capable of configuring, deploying, and monitoring up to 150 separate Grandstream GWN access points.
- Client Device Capacity: Manages up to 500 total local client connections across the wider wireless framework.
Unified Communications and IP PBX Functionality
The gateway contains an internal telephone subsystem that runs an independent private branch exchange server, enabling professional call routing without separate communication hardware.
Capacity and Extension Limits
-
- User Registration: Supports 12 users or extensions by default out of the box.
- Concurrent Calling: Handles 4 simultaneous active voice calls under standard licensing parameters.
- System Upgrades: Features expansion options allowing purchase upgrades to increase user registration capacity and simultaneous call maximums.
- Application Interoperability: Integrates with Grandstream IP desk endpoints and the Wave application across desktop, web, Android, and iOS devices.
