UGREEN 5-In 1-Out HDMI Switch – CM568
Key Features
Brand: UGREEN
Plug and Play
HD Conversion
Display at Both Ends
Wide Range of APPLICATIONS
Gold-plate interface
1 Year Warranty
Ugreen 5-In 1-Out HDMI Switch CM568 Product Overview
The Ugreen 5-In 1-Out HDMI Switch CM568 is a high-performance central media hub engineered to expand the connectivity of a single high-definition display. This Ugreen professional-grade hardware switcher allows users to link up to five distinct HDMI source devices—including gaming consoles, desktop computers, streaming media players, and Blu-ray units—to a single television, monitor, or projector. By centralizing input management, it eliminates the need to continuously swap cables, drastically reducing physical wear on device ports while keeping workspace cable management clean and orderly.
Core Features and Technical Specifications
Ultra-High Definition 4K Visual Performance
Equipped with an advanced HDMI 2.0 processing architecture, the switch seamlessly handles video resolutions up to 4K Ultra HD at a smooth 60Hz refresh rate. It delivers full backward compatibility with 1080p at 120Hz and 2K at 144Hz video standards. Full support for High Dynamic Range including HDR10, Dolby Vision, and Hybrid Log-Gamma guarantees intense color depth, crisp contrast levels, and exceptional picture clarity during media playback or intensive gaming sessions.
High-Speed Signal Integrity and Security
The Ugreen internal hardware provides a massive 18Gbps transmission bandwidth, completely eliminating signal latency, screen tearing, and display flickering. It features full compliance with HDCP 2.2 content protection standards, ensuring secure handshake synchronization with copyrighted media streams. Gold-plated connector pins minimize contact resistance and resist long-term atmospheric oxidation to ensure continuous signal purity.
Flexible Dual-Switching Mechanisms
Managing your inputs is highly efficient with two distinct operation methods. Users can toggle through channels using the manual front-panel push button or utilize the included infrared remote control from distances up to 10 meters away. Clear, dedicated physical LED status indicators are positioned on the front panel to reveal exactly which HDMI source channel is active at any given second
Immersive Multi-Channel Audio Passthrough
The digital architecture routes uncompressed audio alongside the video feed. It fully supports advanced multi-channel surround sound configurations, including Dolby Atmos, DTS:X, Dolby AC3, and 5.1 or 7.1 channel audio layouts. Audio sampling rates are supported up to 192KHz at a 24-bit depth to deliver an immersive acoustic experience.
Key Benefits for Users
-
- Multi-Device Expansion: Safely consolidates five separate input sources into one display output to save space and hardware ports.
- Smooth Gaming Operations: High bandwidth eliminates frame loss and lagging for optimized performance on modern gaming consoles.
- True Plug and Play: Works instantly out of the box across all major operating systems without driver software installations.
- Dedicated USB-C Power: Employs an external 5V USB-C power input port to ensure absolute signal stability even over longer cable run
Ideal Applications and Use Cases
Advanced Home Theater Systems
Perfect for integrating a smart television box, a streaming stick, a Blu-ray player, and a home audio receiver into a single central television panel.
Multi-Console Gaming Stations
Allows gamers to keep their PlayStation, Xbox, and Nintendo Switch systems permanently wired into a single dedicated desktop gaming monitor.
Corporate Boardrooms and Meeting Rooms
Enables seamless switching between up to five different presentation laptops or video conference inputs during collaborative business meetings.
Digital Signage Control
Provides commercial environments with an easy mechanism to rotate media playback sources on a public display array from a hidden hardware rack

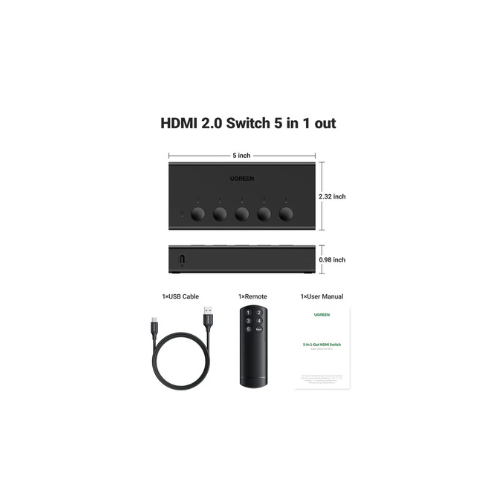

Summary Profile
- Product Brand: Ugreen
- Model Identifier: CM568
- Product Part Number: 90512
- Input Ports: 5x HDMI 2.0 Female
- Output Port: 1x HDMI 2.0 Female
- Peak Resolution: 3840×2160 Ultra HD at 60Hz
- Data Transfer Bandwidth: 18 Gbps
- Security Protocol: HDCP 2.2 Compliant
- Media Compatibility: HDR10, Dolby Vision, 3D, CEC
- Interface Selection: IR Remote Control and Manual Push Button
- Power Connection: USB-C 5V 1A
- Housing Material: Durable ABS Polymer
