Paso PS806B Wire Tracker & Cable Tracer
Key Features
Brand:
Product type: Cable crimping, stripping, and cutting tool
Crimping dies: 6P and 8P
Crimping design: Vertical
Mechanism: Spring-assisted
Cutting protection: Guarded shearing section
Handle material: Polypropylene
Colour: Orange and black
1 Year Warranty
Paso PS806B Wire Tracker & Cable Tracer Review

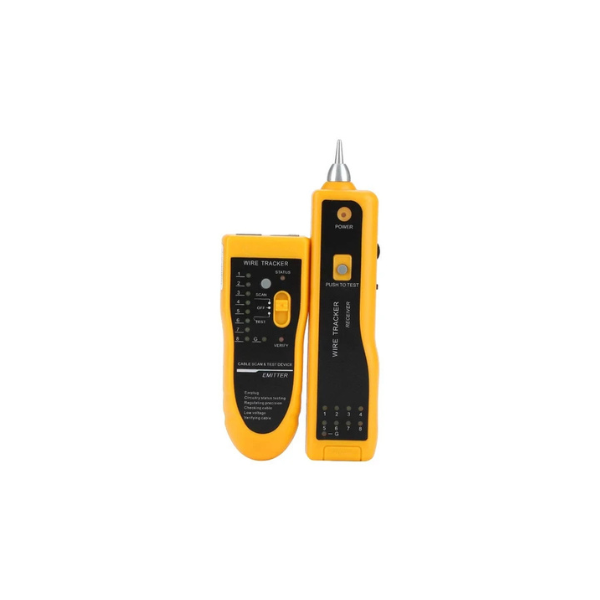

The Paso PS806B Wire Tracker & Cable Tracer (often referred to as a network line finder) is an essential, highly practical diagnostic tool engineered for network administrators, telecommunication engineers, field electricians, and structural IT installers. Composed of a separate transmitter and inductive receiver probe, this tracking kit allows professionals to quickly scan, locate, and map out isolated cables inside server rooms, crowded patch panels, or buried behind office drywall without interrupting service.
By replacing aggressive wire-stripping practices with advanced inductive tone generation, the PS806B ensures rapid cable auditing while fully protecting internal copper conductors from mechanical friction or electrical deterioration.
Inductive Audio Architecture & Hardware Layout
The core tracking module of the Paso PS806B uses an audio tone generator that injects a strong 8Vp-p electrical signal directly into target lines. The companion hand probe detects this alternating field over mid-to-long distances, allowing installers to isolate individual connections from complex cable trunks cleanly and safely.
The structural engineering setup features:
- High-Volume Audio Speaker: Emits a distinct tone alert that increases in frequency and volume as the inductive receiver tip closes in on the targeted line.
- Multi-Port Interface Array: The transmitter box features built-in RJ45 and RJ11 interface ports alongside modular alligator clips to clamp onto raw electrical lines.
- High-Impact ABS Plastic Body: Constructed from a rugged, lightweight, and scratch-resistant yellow/black ABS casing designed to handle daily field drops.
- Dynamic Sensitivity Controls: Features an analog dialing wheel directly on the probe frame to fine-tune signal tracing filters in high-interference settings.
Technical Specifications Checklist
For data center infrastructure worksheets, telecommunication procurement portfolios, and asset comparison metrics, precise data is critical. Below is the official hardware configuration for the Paso PS806B:
| Feature | Specification Details |
|---|---|
| Product Model | PS806B (Transmitter & Receiver Suite) |
| Supported Interfaces | RJ45 Ethernet, RJ11 Telephone, Coaxial (BNC), Alligator Clips |
| Compatible Cable Structures | UTP / STP twisted pair, low-voltage lines, voice links |
| Peak Signal Output Level | Approximately 8 Vp-p strength output |
| Tone Carrier Frequency | Transmitter: 200 Hz | Receiver: 200 kHz |
| Max Tracking Distance | 2 km to 3 km (Depending on path density) |
| System Power Requirements | 2× 9V (6F22) Batteries (One per unit) |
| Operating Thermal Limits | -10°C to +60°C operational environment threshold |
Advanced Diagnostic Utilities & Operational Security
The Paso PS806B separates itself from standard tone injectors by expanding its internal testing modes to encompass full wiremap diagnostics.
Integrated Wiremap Continuity Testing
By plugging both ends of an Ethernet run into the transmitter and receiver simultaneously, the system executes an automated wiremap test. A row of flashing LEDs maps out the internal pin configurations sequentially, letting you instantly diagnose open circuits, shorted pairs, crossed connections, or broken lines.
Live DC Voltage Verification
Beyond passive line searching, the internal circuit block safely checks live lines for basic DC voltage levels. This allows field technicians to confirm active line states and safely avoid introducing accidental shorts onto live telephone or network links.
Job Site Optimization Elements
The receiver probe is carefully customized for complex deployment tasks. It integrates a bright LED flashlight tip to illuminate dark corners or deep server frames, along with an earphone jack interface so technicians can trace audio frequencies cleanly in loud equipment closets without background noise interference.
Key Limitations to Consider Before Buying
To maximize the field life of your network line finder kit, align your structural layouts with these explicit design parameters:
- Requires Double Battery Management: Because the system features two completely independent portable nodes, you must manage and replace separate 9V alkaline batteries for both modules to maintain solid signal output.
- Wired Signal Injection Limits: The tone tracking requires physical contact with a conductor plug or terminal core. It is not a wireless radar unit and will not identify entirely un-linked loose cables inside thick concrete slabs without an injection source.
- Standard Voltage Protection Boundaries: The internal components are rated to handle standard low-voltage telecom data loops. Do not wire the alligator clips directly to live high-voltage AC electrical lines, as excessive current will damage the internal circuitry.
