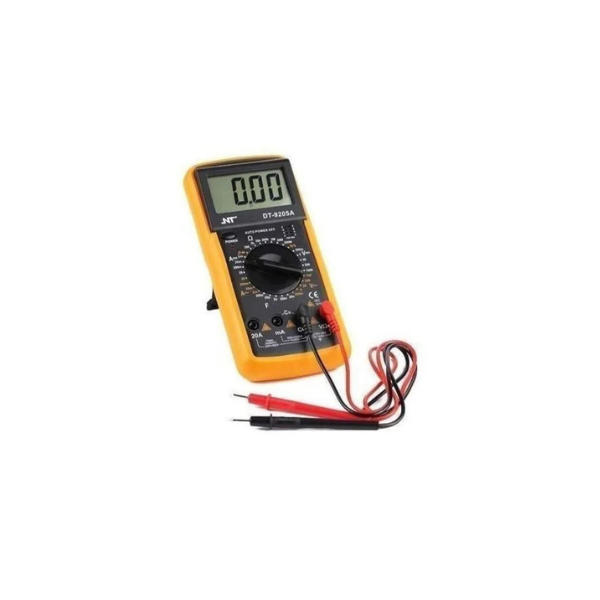

JAKEMY JM-9205A Digital Multimeter
Key Features
Brand:
Measures DC/AC voltage up to 1000V/750V with high accuracy
Tests DC/AC current up to 20A and wide resistance ranges
Includes capacitance, diode, continuity buzzer, and hFE transistor test
Large LCD display with data hold, auto power off, and low battery indication
Overload protection and durable rubber holster for safe, reliable use
1 Year Warranty
JAKEMY Digital Multimeter JM-9205A Review
The JAKEMY Digital Multimeter JM-9205A is a professional-grade, highly versatile electronic measuring instrument engineered for electrical engineers, IT infrastructure specialists, automotive diagnostic technicians, and serious home electronics hobbyists. Moving away from complex, hyper-expensive industrial analyzers, this 3½-digit handheld unit bundles core testing variables into a single durable housing. It provides comprehensive fault-finding and component tracking for everyday repair workflows.
Outfitted with full overload safety protection and a large multi-position adjustable LCD display, the JM-9205A allows technicians to map out electrical paths, evaluate semiconductors, and verify circuit continuity safely and cleanly.
Multi-Mode Diagnostics & Protective Hardware Layout
The electrical configuration of the JAKEMY JM-9205A centers around a 32-position manual rotary switch dial that lets operators explicitly gate targeted test thresholds. The underlying motherboard integrates high-sensitivity split input jacks backed by internal safety fuses to minimize back-EMF burnout risks.
The physical architecture and tool layout includes:
- 3½-Digit Large LCD Display: High-contrast readouts capped at a maximum of 1999 counts, featuring an adjustable tilting frame structure for clear field visibility.
- High-Volume Continuity Buzzer: Provides immediate, clear acoustic tracking alerts to isolate broken line joints or copper board short-circuits instantly.
- Tactile Impact Holster Protection: Wrapped in a rugged, bright orange rubberized boot matrix designed to absorb drops and resist grease on messy workshop benches.
- Onboard Transistor hFE Test Core: Features dedicated input array pin slots to cleanly calculate specific current gain profiles across NPN and PNP crystals.
Technical Specifications Checklist
For enterprise workshop registries, procurement validation records, and instrument comparison sheets, engineering accuracy is crucial. Below is the verified performance matrix for the JM-9205A:
| Feature | Specification Details |
|---|---|
| Product Model | JM-9205A (Digital Multimeter Series) |
| Max Screen Count | 1999 Counts Display |
| DC Voltage Selection | 200mV / 2V / 20V / 200V / 1000V (Accuracy ±0.5% +1) |
| AC Voltage Selection | 200mV / 2V / 20V / 200V / 750V (Accuracy ±0.8% +3) |
| DC/AC Current Scale | 2mA / 20mA / 200mA / 20 Amps Max (Aggregated safety limits) |
| Resistance Limits | 200Ω up to 200MΩ (Accuracy ±2.5% +3 standard scaling) |
| Capacitance Ranges | 2nF to 200μF |
| Onboard Safety Logic | Full Overload Protection, Data Hold, Auto Power-Off (15 Min) |
| Power Infrastructure | 1x 9V (6F22) Alkaline Transistor Battery |
| Physical Dimensions | Approximately 190 mm × 90 mm × 30 mm |
Advanced Testing Utilities & Safety Capabilities
The JAKEMY Digital Multimeter JM-9205A serves as an invaluable asset across standard computer hardware repair pipelines by streamlining intricate diagnostic checks.
Unified Current & Voltage Validation
The tool tracks a wide path of parameters. Technicians can measure standard AC power grids at regional wall outlets, evaluate standard DC vehicle battery fields, or toggle settings to trace current paths on delicate computing logic boards up to a heavy 20A aggregate loop.
Dedicated Semiconductor Verification
Beyond standard continuity buzzers, the selector menu contains targeted nodes to evaluate diodes and transistors. By touching your testing probes to micro-components, the analyzer identifies broken semiconductor gates or blown transistors before you commit to soldering fresh parts.
Battery-Saving Power Management
The onboard programming tracks tool idle periods. If left turned on during an active repair session, the Auto Power-Off loop safely gates the device down after roughly 15 minutes of inactivity, protecting your 9V internal cell from flattening unexpectedly.
Key Limitations to Consider Before Buying
To protect the field operational lifespan of your measuring instrument, match its design boundaries with your daily bench tasks:
- Manual Ranging Specificity: The JM-9205A is a manual-ranging multimeter. You must manually click the dial wheel to your immediate estimated target range (e.g. setting the dial to 20V DC when tracking a 12V system) to avoid imprecise numbers or over-range warnings.
- Avoid High-Voltage Industrial Grids: The internal shielding is meticulously optimized for home applications, field telecom routing, auto diagnostics, and micro-electronics boards. Avoid checking high-voltage industrial sub-stations or heavy factory machinery power drops that exceed its native safety caps.
- Upgrade Probes for Critical Tests: The standard retail test leads included handle general troubleshooting tasks smoothly. For microscopic surface-mount device (SMD) repairs on compact phone logic boards, we highly recommend adding ultra-fine gold-plated needle probes to your toolkit.
