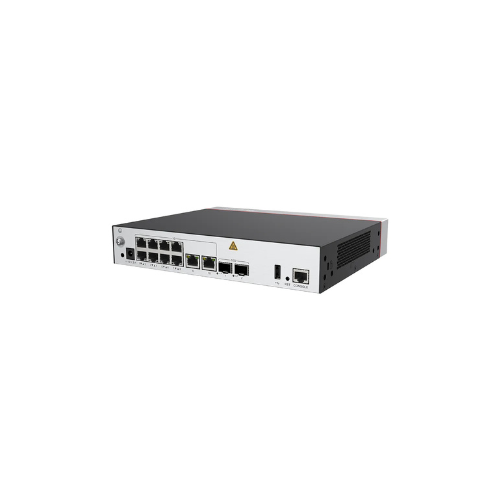

Huawei AC650-128AP Wi-Fi Network Wireless Access Controller
Key Features
Brand: Huawei
10*GE ports, 2*10GE SFP+ ports, built-in 128 license
Storage: Nand FLASH 1GB
Console port: RJ45
Maximum power consumption [W]: 23.58 W
Maximum heat dissipation [BTU/hour]: 80.45 BTU/hour
Power supply mode: DC adapter
Service port surge protection: 6 kV in common mode
Maximum number of physical ports on the entire device: 2 x 10GE (SFP+) + 10 x GE (RJ45)
Weight: 1.9kg
1 Year Warranty
Huawei eKitEngine AP761 Wi-Fi 6 Outdoor Access Point Product Overview
The Huawei eKitEngine AP761 is an industrial grade outdoor Access Point engineered to deliver high performance wireless networking in demanding environments. This dual band device utilizes advanced Wi-Fi 6 technology to provide high speed connectivity, high capacity, and expansive coverage across wide open areas. It serves as a deployment solution for stadiums, public squares, pedestrian streets, amusement parks, and large corporate campuses.
Key Features and Capabilities
Industrial Grade Weatherproofing and Durability
Built to withstand extreme climate variations, the device features a rugged IP68 rated waterproof and dustproof metal enclosure. It operates reliably across an extended temperature range from minus 40 degrees Celsius to plus 65 degrees Celsius. A specialized integrated ventilation valve design balances internal pressure to extend the hardware operational lifespan.
Wi-Fi 6 Speed and Performance Upgrade
The AP761 complies with the 802.11ax standard, enabling data transfer speeds and low network latency. It delivers a combined theoretical wireless throughput rate of up to 1.775 Gbps across its dual frequency bands. The 2.4 GHz band provides up to 574 Mbps for baseline coverage, while the 5 GHz band reaches up to 1.201 Gbps to support bandwidth heavy applications.
Multi User Density Optimization
The hardware implements multi user multiple input multiple output and orthogonal frequency division multiple access technologies. This framework maximizes transmission efficiency, allowing the system to handle concurrent client connections without performance degradation. It provides the infrastructure necessary to eliminate bottlenecks in crowded outdoor public venues.
Smart Antenna and Interference Suppression
Equipped with built in smart directional antennas, the access point automatically optimizes signal focus toward connected clients. The system continuously runs spectrum analysis to isolate and mitigate non Wi-Fi interference from external consumer electronics. This process stabilizes wireless delivery across varying architectural layouts.
Advanced System Protection and Interface Versatility
To secure physical data links against environmental electrical hazards, the unit includes 6 kA surge protection on its Ethernet ports. The hardware architecture provides flexible uplink interfaces, featuring one Gigabit Ethernet electrical port alongside one Gigabit SFP optical port to reduce overall deployment investment costs.
Enterprise Cloud O and M Management
The access point functions across multiple operations profiles including Fit, Fat, Leader, and Cloud management modes. It integrates with the central cloud platform, allowing IT administrators to execute remote configurations, real time tracking, and troubleshooting. Maintenance is simplified via a built in Bluetooth module for close range serial interface diagnostics.
Technical Specifications
-
- Wireless Standard Wi-Fi 6 802.11ax and backward compatible
- Frequency Bands Concurrent 2.4 GHz and 5 GHz
- Maximum Throughput Speed 1.775 Gbps combined
- Spatial Streams 2×2 MU MIMO
- Enclosure Protection Class IP68 Weatherproof
- Surge Protection 6 kA on Ethernet Interfaces
- Network Ports 1 x Gigabit RJ45 Electrical and 1 x Gigabit SFP Optical
- Power Method Power over Ethernet PoE support
Target Deployment Scenarios
Public Venues and Stadiums
Manages high density client groups at open air arenas, tourist plazas, and amusement parks while maintaining stable data distribution.
Commercial Transport and Logistics
Powers consistent wireless bridges across outdoor shipping docks, storage yards, and train depots for automated scanning hardware.
Smart Campus Layouts
Extends corporate or school network boundaries into outdoor courtyards, recreational zones, and perimeter walkways seamlessly.
Frequently Asked Questions
What is the maximum data speed of the Huawei AP761?
The hardware delivers a combined maximum theoretical wireless speed of up to 1.775 Gbps using both frequency bands simultaneously.
Is the Huawei eKitEngine AP761 suitable for severe winters?
Yes the access point is built for harsh weather, operating within a wide temperature range from minus 40 degrees Celsius up to plus 65 degrees Celsius.
Does this outdoor AP support fiber optic connections?
Yes the hardware configuration includes a dedicated Gigabit SFP optical uplink interface alongside its standard electrical port.
How does the device protect itself from lightning strikes?
The unit features enhanced industrial grade built in service port surge protection rated up to 6 kA to safeguard internal modules.
Can I manage this device without a physical on site controller?
Yes the system fully supports remote cloud management mode, allowing standalone provisioning and monitoring through a central application.
