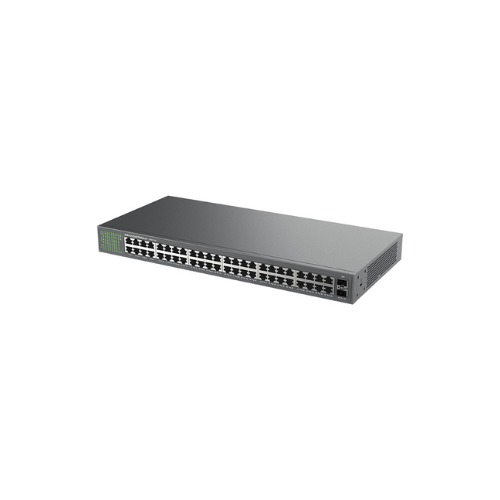

Grandstream GWN7706 Unmanaged Network Switch
Key Features
Brand:Grandstream
5/8/16/24/48 Gigabit RJ45 ports, 4 port PoE+ output (GWN7700P & GWN7701P), 8 port PoE+ output (GWN7701PA & GWN7702P)
Green technology reduces power consumption
LED Indicators; Per port: Link/Activity/Speed, Per Port: PoE output (GWN7701PA/GWN7702P), Per device: Power
Auto MDI/MDIX crossover for all ports
802.3 af/at compliant Up to 30W on each port, (GWN7700P/GWN7701P/
GWN7701PA/GWN7702P only)
Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
Supports long cable connection
QoS – Supports Default Strict Priority when present
1 Year Warranty
Grandstream GWN7706 Unmanaged Switch Complete Review and Setup Guide
The Grandstream GWN7706 is an enterprise-grade Layer 2 unmanaged network switch designed to provide quick cost-effective high-density Gigabit connectivity. This guide covers its key features specifications deployment strategies and performance capabilities to help you optimize your business network.
As modern companies scale up their digital operations reliable wired infrastructure becomes mandatory. The GWN7706 addresses this by combining high-speed wireline delivery with massive port capacity. It serves as a scalable solution for organizations experiencing sudden increases in local device deployment and hardware communication demands.
This specific network switch acts as a central data distribution hub for hardware endpoints that rely heavily on uninterrupted connections. By deploying this device network administrators can easily eliminate connectivity bottlenecks and support massive wired network layouts. The system is built to sustain intensive data traffic making it an ideal choice for businesses transitioning into streamlined high-performance office environments.
Key Features of the Grandstream GWN7706
This high-density unmanaged switch offers advanced physical hardware capabilities tailored for medium-to-large business demands.
-
- Plug and Play Operation: Requires no manual software programming or configuration.
- Massive Gigabit Capacity: Provides forty-eight total physical data ports supporting high-speed transmissions.
- Green Technology Integration: Reduces internal power consumption automatically based on link status and cable lengths.
- Smart Performance Delivery: Features a 100 Gbps non-blocking aggregate switching capacity to prevent bottlenecks.
- Auto MDI-MDIX: Detects and corrects cable connection types automatically without crossover cables.
- Rack Mountable Form Factor: Supports clean standard installation inside network server enclosures.
Technical Specifications
Understanding the technical details helps determine proper data loading and physical compatibility.
-
- Ethernet Ports: 48x autosensing 10-100-1000 Base-T network interfaces.
- Mac Address Management: Features automated auto-learning and auto-aging functionality.
- Jumbo Frame Support: Handles up to 9KB jumbo frames for large file transfers.
- Traffic Quality Management: Features built-in Quality of Service supporting Default Strict Priority.
- Internal Power Source: Equipped with a dependable internal universal AC power supply.
- Physical Enclosure: Built using a durable metal housing designed for maximum longevity.
Management and Deployment Advantages
Grandstream builds this unmanaged device to maximize physical integration convenience and minimize manual oversight.
No Software Maintenance
Because this hardware functions completely as a Layer 2 unmanaged device it lacks a localized web browser interface or software OS to update. This eliminates standard configuration vulnerabilities and firmware patch requirements.
Automated Auto Negotiation
Each port uses smart internal logic to instantly detect the specific operational connection speed of any attached device. This ensures legacy electronics communicate cleanly alongside modern hardware setups.
Integrated Storm Control
Built-in physical broadcast multicast and unicast storm control mechanisms continuously analyze traffic spikes. It restricts excess packets to preserve overall local area network stability.
Ideal Use Cases
The expanded port layout and forty-eight high-speed connection points make this unit optimal for several distinct target deployments.
- Large Corporate Offices: Links entire floors of desktop computers network storage drives and printers to a core switch instantly.
- Commercial Retail Complexes: Connects a comprehensive grid of register terminals receipt printers card readers and back-office systems.
- Voice over IP Departments: Connects a dense array of desktop IP phones directly through a centralized building network.
- Educational Server Rooms: Feeds fast reliable data lines to entire rows of student computer labs and institutional hardware.
