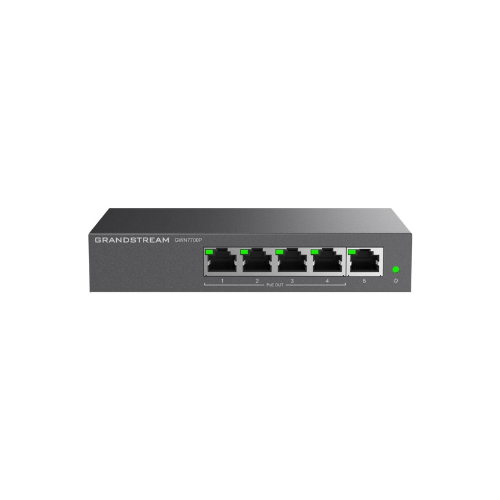

Grandstream GWN7700P Unmanaged Network PoE Switch
Key Features
Brand:Grandstream
5/8/16/24/48 Gigabit RJ45 ports, 4 port PoE+ output (GWN7700P & GWN7701P), 8 port PoE+ output (GWN7701PA & GWN7702P)
Green technology reduces power consumption
LED Indicators; Per port: Link/Activity/Speed, Per Port: PoE output (GWN7701PA/GWN7702P), Per device: Power
Auto MDI/MDIX crossover for all ports
802.3 af/at compliant Up to 30W on each port, (GWN7700P/GWN7701P/
GWN7701PA/GWN7702P only)
Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
Supports long cable connection
QoS – Supports Default Strict Priority when present
1 Year Warranty
Grandstream GWN7700P Unmanaged PoE Switch Complete Review and Setup Guide
The Grandstream GWN7700P is an enterprise-grade Layer 2 unmanaged network PoE switch designed to provide quick cost-effective Gigabit connectivity. This guide covers its key features specifications deployment strategies and performance capabilities to help you optimize your business network.
As modern companies scale up their digital operations reliable wired infrastructure becomes mandatory. The GWN7700P addresses this by combining high-speed wireline delivery with automated power management. It serves as a scalable solution for organizations experiencing sudden increases in local device deployment and hardware communication demands.
This specific network switch acts as a central power and data distribution hub for hardware endpoints that rely heavily on uninterrupted connections. By deploying this device network administrators can easily eliminate connectivity bottlenecks and remove the need for individual external power bricks. The system is built to sustain intensive data traffic making it an ideal choice for businesses transitioning into streamlined high-performance office environments.
Key Features of the Grandstream GWN7700P
This unmanaged PoE switch offers advanced physical hardware capabilities tailored for small-to-medium business demands.
-
- Plug and Play Operation: Requires no manual software programming or configuration.
- Gigabit Wireline Speeds: Provides five total physical data ports supporting high-speed transmissions.
- Power over Ethernet: Features four integrated PoE+ ports to energize local hardware endpoints.
- Smart Power Allocation: Dynamically handles power distribution with automated lower-priority port cutoff features.
- Green Technology Integration: Reduces internal power consumption automatically based on link status and cable lengths.
- Flexible Mounting Options: Supports immediate physical setup on a desktop surface or a vertical wall.
Technical Specifications
Understanding the technical details helps determine proper power loading and physical compatibility
-
- Ethernet Ports: 5x autosensing 10-100-1000 Base-T network interfaces.
- PoE Capacity Standards: IEEE 8023af and 8023at compliance on ports 1 through 4.
- Total PoE Budget: Supplies up to 30W per single port with a 60W total maximum budget.
- Switching Performance: Delivers a 10 Gbps non-blocking aggregate switching capacity.
- Traffic Quality Management: Features built-in Quality of Service supporting Default Strict Priority.
- Network Media Support: Automatic MDI-MDIX crossover detection across all five available connection points.
Management and Deployment Advantages
Grandstream builds this unmanaged device to maximize physical integration convenience and minimize manual oversight.
No Software Maintenance
Because this hardware functions completely as a Layer 2 unmanaged device it lacks a localized web browser interface or software OS to update. This eliminates standard configuration vulnerabilities and firmware patch requirements.
Automated Auto Negotiation
Each port uses smart internal logic to instantly detect the specific operational connection speed of any attached device. This ensures legacy electronics communicate cleanly alongside modern hardware setups.
Integrated Storm Control
Built-in physical broadcast multicast and unicast storm control mechanisms continuously analyze traffic spikes. It restricts excess packets to preserve overall local area network stability.
Ideal Use Cases
The compact form factor and dynamic PoE capabilities make this unit optimal for several distinct target deployments
- Small and Home Offices: Links desktop computers network storage drives and printers to a primary router instantly.
- IP Surveillance Arrays: Feeds power and aggregates data streams from four separate high-definition security cameras.
- Voice over IP Setups: Connects and energizes multiple desktop IP phones directly through the network cabling.
- Wireless Expansion Projects: Provides a clean point to link up and power downstream Wi-Fi access points
