Grandstream GWN7624 WiFi 5 In-Wall WiFi Access Point
Key Features
Brand:Grandstream
Wi-Fi Standards: IEEE 802.11 a/b/g/n/ac
Antennas: Two 5G & two double frequency internal antennas, 2.4GHz, gain 3dBi; 5GHz, gain 5dBi
Frequency Bands: 2.4GHz Radio: 2412 – 2484 MHz 5GHz Radio: 5180 – 5825 MHz *Not all frequency bands can be used in all regions
Channel Bandwidth: 2.4G: 20 and 40 MHz, 5G: 20, 40 and 80 MHz
Wi-Fi and System Security: WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO: 2×2:2 2.4GHz(MIMO), 4×4:4 5GHz(MU-MIMO)
Coverage Range: Up to 100 meters *coverage range can vary based on environment
Maximum TX Power: 2.4G: 23dBm, 5G: 25dBm *Maximum power varies by country, frequency band and MCS rate
SSIDs: 16 SSIDs total, 8 per radio (2.4GHz & 5GHz)
Concurrent Clients: Up to 200
1 Year Warranty
Grandstream GWN7624 Wi-Fi 5 In-Wall Access Point Complete Review and Setup Guide
The Grandstream GWN7624 is an enterprise-grade 80211ac Wave-2 Wi-Fi 5 in-wall access point designed for high-density environments. This guide covers its key features specifications deployment strategies and performance capabilities to help you optimize your business network.As modern companies scale up their digital operations reliable wireless infrastructure becomes mandatory. The GWN7624 addresses this by combining high-speed wireless delivery with sophisticated network traffic management. It serves as a scalable solution for organizations experiencing sudden increases in user traffic and data demands.This specific access point acts as a central hub for distributed workforces that rely heavily on uninterrupted cloud services and voice over IP communications. By deploying this device network administrators can easily eliminate coverage dead zones and mitigate packet loss during peak operational hours. The system is built to sustain intensive data loads making it an ideal choice for businesses transitioning into fully automated workflows.
-

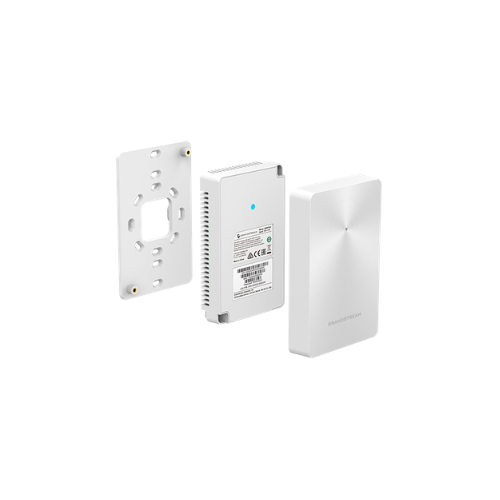

- In-Wall Design: Mounts cleanly directly into a standard wall junction box.
- Dual-Band Technology: Supports both 24GHz and 5GHz wireless bands.
- Wave-2 MU-MIMO: Uses 2×2:2 MU-MIMO technology for efficient transmission.

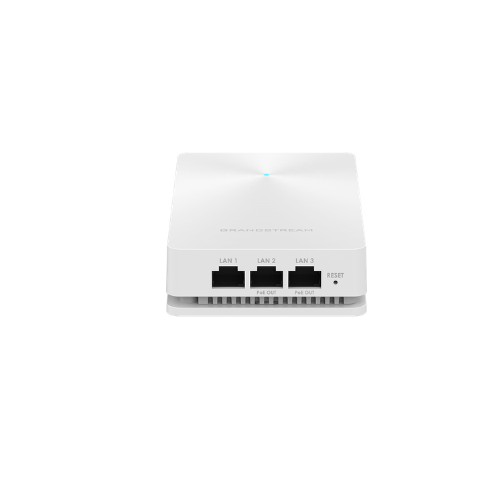

- Integrated Ethernet Switch: Provides four functional local Gigabit network ports.
- PoE Output Capability: Supplies power to an attached IP phone or camera.
- High Device Capacity: Supports up to 200 concurrent client devices.
-
- Wi-Fi Standards: IEEE 80211 a-b-g-n-ac Wave-2
- Maximum Data Rate: 1267 Gbps aggregate wireless throughput
- Network Interfaces: 1x Gigabit Uplink port and 4x Gigabit Local ports
- Power over Ethernet: Supports 8023af and 8023at PoE input
- PoE PSE Out: Delivers power via one local Ethernet port
- Security Protocols: WEP WPA-WPA2-PSK WPA Enterprise
- Hotels and Hospitality: Provides individual room coverage and hardwired ports for smart TVs.
- Student Dormitories: Delivers dedicated Wi-Fi access alongside wired laptop connections.
- Multi-Dwelling Units: Fits cleanly into apartment living rooms for low-profile networking.
- Modern Medical Clinics: Connects desktop terminals and mobile health carts simultaneously
