Grandstream GDS3710 HD IP Video Door System
Key Features
Brand: Grandstream
Powerful video resolutions up to 1080p
Built-in RFID chip reader for keyless entry
SIP video streaming to NVRs, video intercom stations, IP phones, or smart phones simultaneously
Built with a metal casing to make it weatherproof and vandal resistant
Built-in hemispheric camera allows for 180-degree wall-to wall coverage
Supports motion detection
Integrated PoE to power the device and provide a network connection
Built-in microphone and speaker offers voice options and intercom functionality
ONVIF Profile S compliant
1 Year Warranty

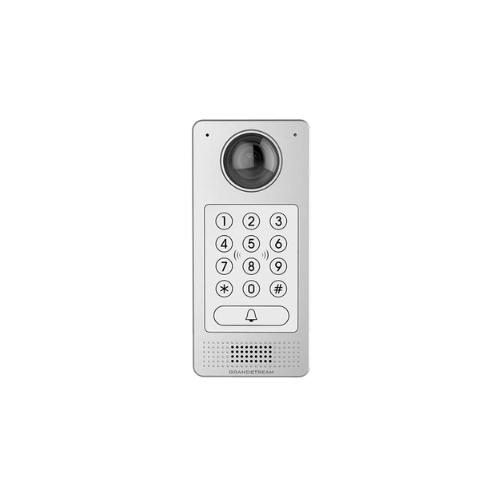

Grandstream GDS3710 HD IP Video Door System
The Grandstream GDS3710 is a high-definition IP video door system designed for facility access control, video surveillance tracking, and intercom communication. This Grandstream device functions as a standalone security endpoint. It integrates with existing network systems, video recorders, and electronic locks to manage physical entry points without requiring dedicated security desk hardware.Â
Hardware and Camera Specifications
The physical layout combines a weatherproof exterior casing with a high-definition camera and audio system. This setup ensures continuous outdoor operation and clear tracking at busy entryways.Â
Structural Build and Weather Protection
The chassis utilizes materials engineered to withstand physical impacts and harsh outdoor environments.
-
- Weather Resistance: Rated at IP66 standards to protect internal circuitry from rainwater and dust contamination.
- Vandal Protection: Certified to IK09 impact resistance guidelines to guard against deliberate physical damage.
- Casing Material: Housed in a zinc alloy metal enclosure with a scratch-resistant glass surface.Â
Video Performance and Lens Optic
The processing hardware handles real-time visual streaming to verify visitor identities prior to granting building access.Â
-
- Resolution Support: Delivers up to 1080p Full High Definition video streaming at 30 frames per second.
- Camera Lens: Equipped with a hemispheric camera lens providing ultra-wide coverage tracking.
- Field of View: Features a 180-degree wall-to-wall viewing angle to eliminate blind spots near the door.
- Lighting Support: Includes built-in infrared illumination LEDs for automated night vision in pitch-black conditions.
Audio Performance and Voice Capture
The internal acoustics handle high-volume environments to ensure clear two-way communication between visitors and interior staff.
-
- Microphone Design: Contains an integrated microphone array for directional voice tracking.
- Pickup Range: Supports reliable audio capture distances up to 1.5 meters from the front panel.
- Loudspeaker Power: Equipped with a built-in 2 Watt speaker providing clear output volume.
- Acoustic Processing: Incorporates advanced echo cancellation to minimize ambient street sounds.
Access Control and Facility Integration
The device includes integrated readers and input wiring to function as an independent lock manager and credential checker.Â
RFID and Keypad Entry Options
Users can unlock connected doors using physical access cards, digital codes, or scheduling rules.Â
-
- Card Reader: Built-in 125 Kilohertz radio-frequency identification chip reader.
- Keypad Control: Features a backlit 12-key numeric pad for pin-code entry and direct extension dialing.
- Access Logs: Stores local user credential files to verify access rights when network data drops occur.
Electronic Lock and Automation Terminals
The rear wiring block connects directly to security relays and auxiliary physical facility sensors.
- Relay Outputs: Equipped with 2 optocoupler-isolated relays to trigger electric strikes, magnetic locks, or automatic gate motors.
- Alarm Inputs: Contains 2 alarm input terminals for connecting door status sensors or exit request buttons.
- Wiegand Interface: Features Wiegand input and output lines to link the unit into third-party access control panels.
