Grandstream GAC2570 Enterprise Conference Phone
Key Features
Brand: Grandstream
Full-duplex speakerphone with HD acoustic chamber, advanced acoustic echo cancellation, and microphone beamforming array
12 omnidirectional microphones with MMAD (Multichannel Microphone Array Design)
Supports 5m pickup range, and can be paired with two GMD1208 desktop wireless microphones up to 20m away for full-room coverage
10/100/1000Mbps network port with PoE+ and dedicated media port for collaborate
Integrated Bluetooth 5.0 support
Integrated Wi-Fi 6, Dual-band 2.4 & 5GHz with 802.11 a/b/g/n/ac/ax
Supports 12-party conferences
1 Year Warranty

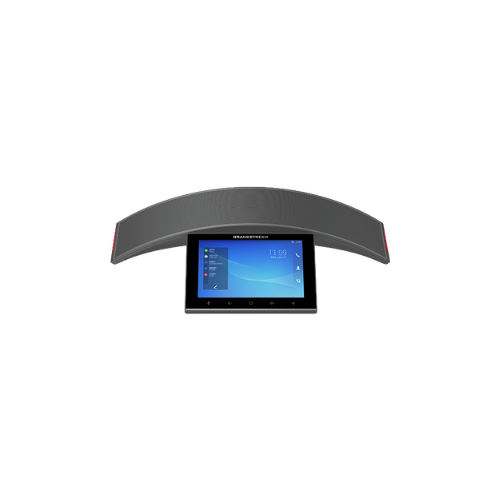

Grandstream GAC2570 Enterprise Conference Phone
The Grandstream GAC2570 is a high-density audio conferencing endpoint designed for large conference rooms, boardrooms, and auditorium spaces. Running on an advanced Android system, this device operates as a standalone collaboration hub. It allows users to initiate and manage meetings directly from the tabletop hardware. It integrates standard business telephony protocols with modern cloud communication software.
Hardware and Technical Specifications
This Grandstream desktop endpoint utilizes modern audio processing architecture and a large interactive control panel. The physical design maximizes user accessibility and audio coverage.
Touchscreen Display and Control Interface
The Grandstream user interface allows meeting hosts to manage multiple participants and lines without a separate computer or phone.
-
- Display Size: Features a 7 inch capacitive touchscreen display.
- Resolution Quality: Utilizes a 1280 by 800 pixel resolution for clear text and icon legibility.
- Interface: Operates on an Android 10 platform allowing custom application access and intuitive menu control.
Audio Quality and Voice Capture
The internal acoustics and sound components are optimized to deliver full-duplex communication across wide areas.
-
- Microphone Design: Contains a built-in 12 microphone array using directional beamforming technology.
- Pickup Range: Supports a voice pickup radius of up to 5 meters in all directions.
- Loudspeaker Power: Equipped with a 10 Watt high-fidelity speaker featuring an auxiliary bass chamber.
- Acoustic Clarity: Incorporates specialized echo cancellation and automatic gain control.
- Noise Suppression: Utilizes intelligent background sound filtering to isolate human speech from ambient office noises.
Software Compatibility and Line Capacity
The software architecture supports simultaneous connections to different communication protocols.
Android Application Support
The underlying platform allows organizations to download and run web collaboration tools directly on the hardware. Teams can join calls using native tools or third-party meeting applications without external conversion equipment.
Multi Party Conferencing Power
The media processor handles local bridging to connect multiple remote parties together directly on the unit.
-
- 12 Way Voice Bridge: Supports an integrated 12-way voice conference bridge.
- Protocol Mixing: Allows users to mix calls from standard Session Initiation Protocol lines with application-based audio streams.
Physical Connectivity and Interface Options
The hardware chassis includes physical interfaces and wireless radios to expand network placement and peripheral connection options.
Wired Connections and Network Speed
-
- Network Interface: Built with a single Gigabit RJ45 Ethernet port for network stability.
- Power Delivery: Supports integrated Power over Ethernet Plus to run the device over the network line.
- Media Port: Includes an HDMI output port to transmit presentation video or application interfaces to a room display.
- Audio Inputs Outputs: Contains a 3.5 millimeter auxiliary port and a dedicated USB wired port for external hardware.
- Expansion Ports: Features a media expansion port to link extra wireless or wired microphones for larger tables.
Wireless Network Hardware
- Integrated Wi-Fi: Supports built-in dual-band 802.11a b g n ac ax Wi-Fi 6 for high-speed wireless network environments.
- Integrated Bluetooth: Features built-in Bluetooth 5.0 technology to connect mobile phones, tablets, or wireless headsets.
