Fanvil VIK-01 Video Intercom Kit
Key Features
Brand: Fanvil
Monitor door phone camera footage on both mobile and indoor station
Flexible door access methods
Supports one-touch calling
Remote door opening anywhere, anytime
Quick deployment
CCTV integration
Full-duplex high-definition audio
7-inch color touchscreen
Wall-mounted
1 Year Warranty

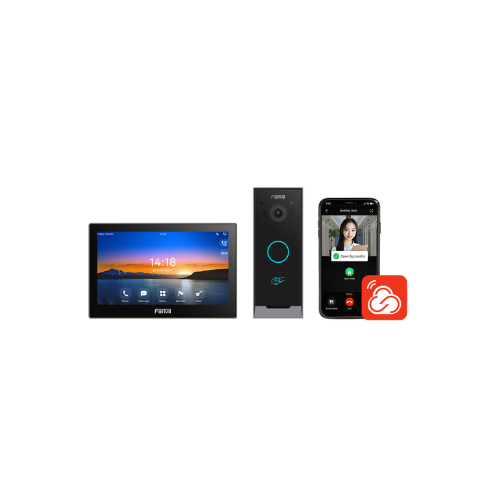

Fanvil VIK-01 Video Intercom Kit Smart All-in-One Residential & Office Security Solution
The Fanvil VIK-01 Video Intercom Kit is an enterprise-grade, pre-bundled smart access control solution engineered to provide seamless visitor management, high-definition video monitoring, and multi-credential door entry. Purpose-built for luxury villas, single-family residences, and secure office suites, this comprehensive security ecosystem pairs a robust outdoor intercom station with an intuitive indoor touchscreen panel and cloud app support right out of the box. Whether you are automating modern property access gates in Westlands, tracking guest arrivals for a commercial office in the Nairobi CBD, or monitoring residential boundaries in Kilimani, this unified video kit ensures robust, plug-and-play building security.Â
Complete Ecosystem Hardware Breakdown
allows property owners to completely skip complex manual multi-device pairing routines by utilizing automated local network synchronization.Â
-
- Fanvil i60 Video Door Phone (Outdoor Unit): Features a solitary, back-illuminated digital speed-dial button on a heavy-duty frame designed to capture wide-angle entrance dynamics day or night.
- Fanvil i504W SIP Indoor Station (Indoor Monitor): Outfitted with a premium 7-inch color capacitive touchscreen (1024×600) to control localized intercom feeds and authorization triggers.
- Fanvil Link App (Mobile Component): Bundled with the system to handle mobile pushes, remote off-site unlocking, and real-time live video streams straight to your smartphone.
- Installation Protection Accessories: Ships directly with a custom-molded outdoor rain cover, wall-mount brackets, and full wiring packs to facilitate immediate structural mounting.Â
Why Deploy the Fanvil VIK-01 Video Intercom Kit
The Fanvil VIK-01 delivers the optimal mix of edge-computing access validation, uncompromised environmental weathering, and automated home security integration.Â
1 High-Definition Visuals and True ONVIF CCTV IntegrationÂ
Eliminate dangerous property visual blind spots entirely. The outdoor door phone features a 2-megapixel high-dynamic-range (HDR) camera lens with a sweeping 140-degree diagonal viewing angle and automated infrared (IR) night vision. Natively compliant with ONVIF Profile S parameters, the indoor 7-inch monitor allows occupants to bridge local IP security cameras directly to the screen, serving as a unified perimeter monitoring grid.Â
2 Multi-Credential Secure Unlocking Framework
Take effortless control over structural building clearance rules. The kit accommodates up to 10,000 local proximity IC cards (13.56 MHz) and matches modern access workflows by accepting Bluetooth Low Energy (BLE) app handshakes, numeric DTMF keypad paths, physical indoor switch triggers, or remote one-touch cloud signals.Â
3 Vandal-Resistant Casing and 8-Channel Industrial Alarms
Secure long-term operational resilience under heavy environmental strain. The outdoor i60 chassis achieves a certified IP65 water and dust infiltration rating, surviving extreme temperatures ranging from -40°C up to +70°C. Additionally, the indoor panel functions as a smart security console, hardwiring up to 8 distinct alarm sensor contacts (smoke detectors, motion grids, or window reeds) to trigger automated facility sirens.
Key Technical Specifications
- System Bundle Components: 1 x i60 Video Door Phone, 1 x i504W Touch Indoor Monitor, Rain Cover
- Outdoor Camera Module: 2-Megapixel HDR Lens; 140° Diagonal Ultra-Wide FOV; Infrared Night Vision
- Indoor Interface Display: 7-Inch Backlit Graphical Color Capacitive Touch Screen (1024×600 resolution)
- Wireless Network Capabilities: Built-in Dual-Band Wi-Fi (2.4GHz & 5GHz) on the Indoor Monitor
- Audio Engineering Standards: Full-Duplex Hands-Free Call Path with Acoustic Echo Cancellation (AEC)
- Access Control Capacities: Integrated RFID Proximity Reader Supporting up to 10,000 Local Cards
- Physical Interface Array: 10/100 Mbps Ethernet Ports, Wiegand 26/34 Bit Links, Onboard Locking Relay
- Alarm Console Matrix: 8 x Alarm Inputs, 1 x Short-Circuit Output, 1 x Doorbell Input
- Power Delivery Options: 802.3af Power over Ethernet (PoE Class 3) or Local 12V/1A DC Inputs
- Communication Infrastructure: Standard SIP 2.0 Protocols over secure UDP/TCP/TLS pathways
