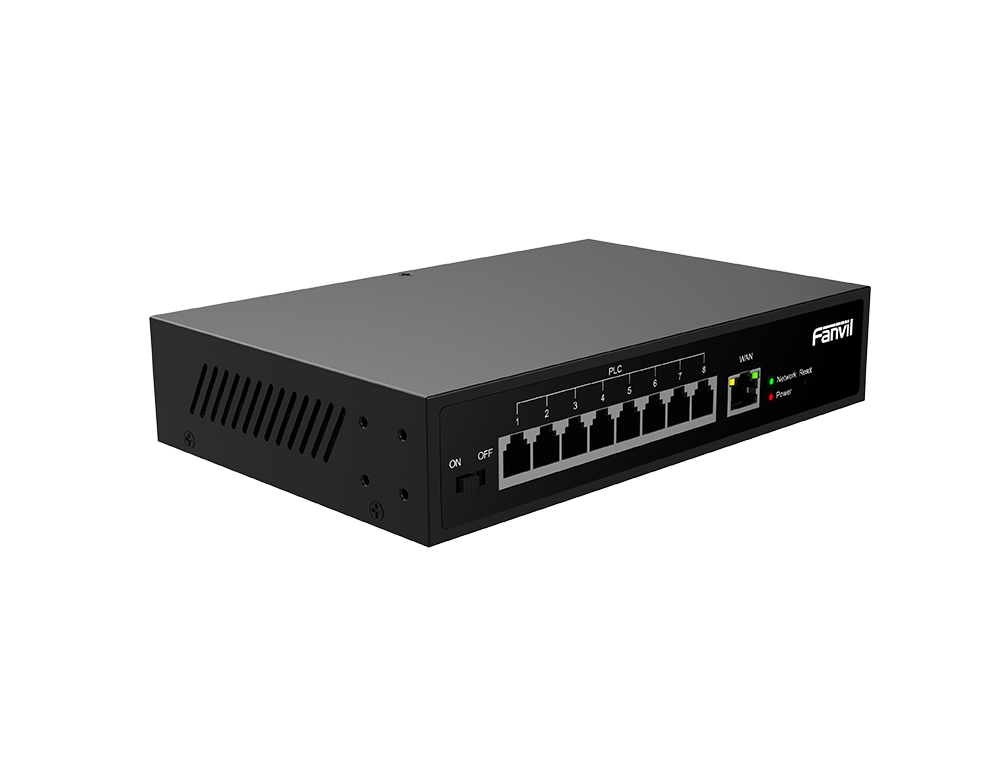

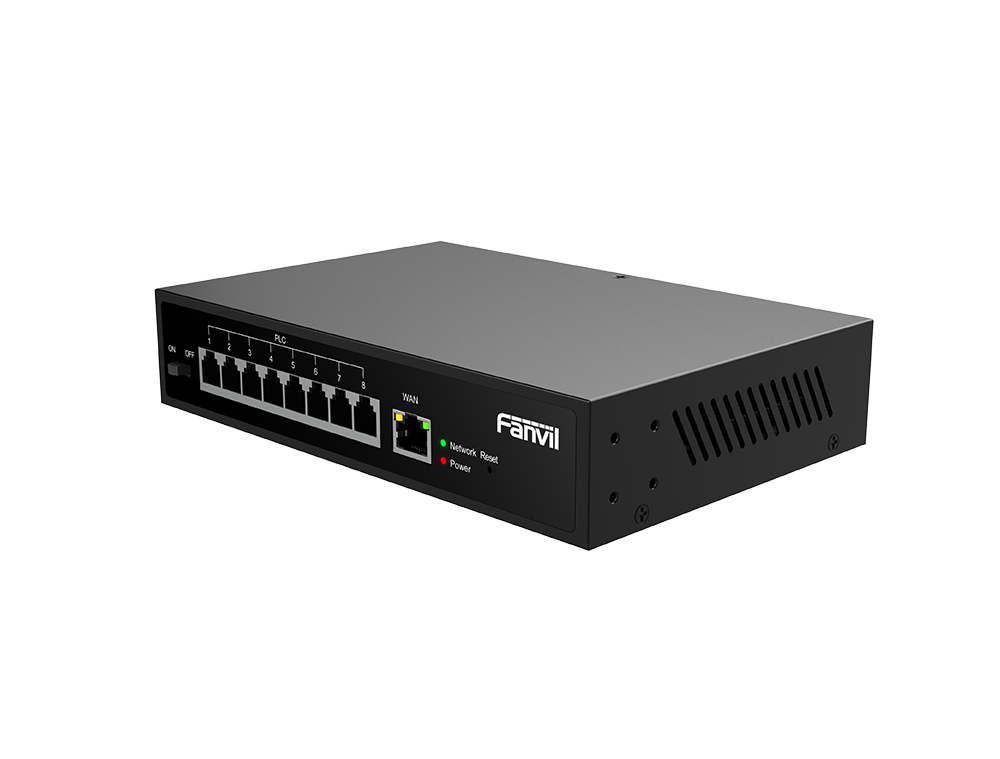

Fanvil PN8 2-Wire PoE Switch
Key Features
Brand: Fanvil
Reuse existing wires (PSTN & AWG cables) to save wiring costs
Connect any PoE-enabled IP device using a 2-wire cable to simplify the wiring process
Compatible with PN8 and PN24 switches for network and power supply, enabling flexible networking
No master-slave distinction between the two PN1 converters Maximum transmission distance is up to 300 meters (Network and power supply)
Standard PoE output (IEEE 802.3af/at)
Sleek and modern design suitable for various environments.
1 Year Warranty
Fanvil PN8 2-Wire PoE Switch Enterprise-Grade Central Legacy Infrastructure Master Switch
The Fanvil PN8 2-Wire PoE Switch is an enterprise-grade, high-capacity central master switch engineered to manage, power, and route high-speed IP networks entirely over legacy two-wire analog cabling. Purpose-built to serve as the central control hub for upgrading hotels, multi-tenant residential buildings, commercial complexes, and older campus facilities, this 1U rack-mountable master device bridges old traditional telephone copper paths into modern digital networks. Whether you are aggregating centralized IP intercom networks in Westlands, upgrading commercial workspace telephony arrays in the Nairobi CBD, or running real-time facility monitoring backbones in Kilimani, this advanced 2-wire switch ensures uncompromised network continuity.
Fanvil High-Density 2-Wire Aggregation and Gigabit Network Links
Deploying the Fanvil PN8 inside your central server room or network closet is the single most effective method to overhaul your building-wide communication lines without executing costly structural alterations.
- 8-Port Dedicated 2-Wire Interfaces: Features 8 specialized downstream 2-wire ports to cleanly aggregate and manage up to 8 independent remote digital terminals concurrently over old copper lines in Upper Hill.
- Dual Gigabit Combo Uplink Ports: Outfitted with 2 high-speed 10/100/1000 Mbps RJ45/SFP combo uplink ports, enabling seamless, unthrottled data bridging directly into core fiber networks or main switches in Parklands.
- Massive Long-Range Combined Delivery: Transmits stable data signals and downstream operating power up to 300 meters away along Mombasa Road, while expanding up to 1600 meters when routing independent network telemetry.
- High-Velocity Broadband Throughput: Drives high-speed physical transmission processing rates up to 240Mbps per port, effortlessly sustaining concurrent high-definition video conferencing and heavy data transfers.
The Fanvil PN8 delivers the robust centralized power budget, comprehensive network layer configuration, and elite structural property deployment needed for demanding system retrofits.
1 Tens of Thousands in Cabling Capital Savings
Bypass the severe administrative disruptions, drilling permits, long labor downtime, and high capital expenditures associated with tearing open concrete walls, floors, or drop ceilings to run standard Cat5e/Cat6 LAN lines. By breathing new life into pre-existing analog infrastructure, the PN8 slashes your immediate deployment deployment budget.
2 Heavy-Duty Built-in Power Budget and Central ManagementÂ
Take the guesswork out of outfitting multiple advanced endpoints. The switch integrates a high-capacity internal power supply engine that safely pushes clean, stabilized Power over Ethernet equivalents directly down the 2-wire runs, entirely removing the need to deploy local electrical wall outlets or messy transformer bricks at the remote user desks.
3 Universal Compatibility with 2-Wire Downstream Assets
- Downstream Hardware Distribution: 8 x Dedicated 2-Wire Port Interface Terminals
- Upstream Network Connection Array: 2 x 10/100/1000 Mbps Self-Adaptive RJ45/SFP Combo Gigabit Ports
- Max Downstream Throughput Velocity: Physical layer transmission speeds up to 240Mbps per port
- Max Combined Power and Data Distance: Up to 300 Meters supporting standard downstream power delivery
- Max Independent Signal Distance: Up to 1600 Meters running independent long-range network lines
- Power Supply Architecture: Heavy-Duty Integrated Internal Power Supply Unit
- Casing Material Build Profile: Industrial-Grade Robust Sheet Metal Master Enclosure
- Form Factor Mounting Options: 1U Space-Saving Design; Fits standard server rack enclosures or desktop setup
- Management Console Diagnostics: Comprehensive web-interface status dashboard with remote port troubleshooting
