Fanvil i507W 10.1-inch Android SIP Indoor Station – i507W
Key Features
Brand: Fanvil
7-inch high-resolution touchscreen with a smooth Android interface
Built-in Wi-Fi for flexible, cable-free installation
Full SIP support for two-way audio and video communication
Clean, modern design suitable for home and commercial installations
Integrates with IP door stations, cameras, and access control systems
Supports video preview, call recording, intercom, and broadcast functions
Fast response and stable performance powered by Android OS
Easy configuration with PoE or DC power options
1 Year Warranty

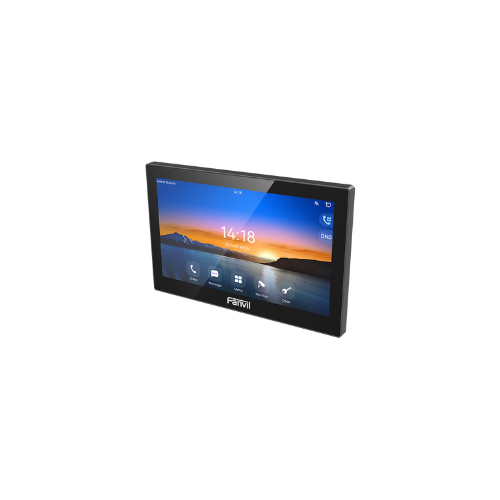

Fanvil i507W 10.1-inch Android SIP Indoor Station Touchscreen Security Dashboard
The Fanvil i507W is an enterprise-grade intelligent Android SIP indoor station engineered to provide central access control, high-definition video monitoring, and multi-device security management. Designed to serve as a premium interactive hub for luxury villas, high-end residential communities, and modern commercial offices, this wall-mounted console integrates an expansive touchscreen interface with open mobile operating system flexibility. Whether you are authorizing front-gate visitor entry from Westlands, streaming real-time perimeter surveillance feeds in the Nairobi CBD, or tracking multi-apartment property security alarms in Kilimani, this Android-powered indoor terminal ensures unmatched operational building control.
Android OS Framework and Expansive 10.1-Inch Display
-
- Massive 10.1-Inch IPS Touch Panel: Displays sharp, high-definition video at an extensive 1280×800 pixel resolution, making it much easier to inspect visitor cameras from across a room.
- Intelligent Android 9.0 Operating System: Features an open and highly flexible platform that supports secondary software development and the installation of third-party smart home or property management applications.
- 1080p Video Decoding and Surveillance Integration: Natively processes H.264 and modern H.265 video profiles, allowing users to monitor live video feeds from external SIP door phones and local IP security cameras directly on-screen.
- Multi-Line SIP Protocol Support: Operates smoothly over standard SIP 2.0 protocols, allowing property managers to bridge the unit directly into existing IP-PBX phone systems or cloud VoIP networks.
Why Deploy the Fanvil i507W Security Dashboard
The Fanvil i507W delivers the optimal mix of comprehensive industrial hardware connections, dual-band wireless deployment, and premium audio-visual property controls
1 Extensive 8-Channel Security Alarm Interfaces
Transform your indoor station into a centralized security command console. Built with 8 specialized alarm input connections, the rear terminal block lets users hardwire external safety sensors—including smoke detectors, window contacts, motion grids, and panic buttons—to trigger instant audible alerts and notify building security dispatchers.
2 Built-in Dual-Band Wi-Fi and Single-Cable PoE Options
Minimize deployment complications and physical retrofitting expenditures inside finalized properties. The console incorporates high-speed 2.4 GHz and 5 GHz dual-band wireless radios to connect over the air where data drops are unavailable, while also supporting standard 802.3af Power over Ethernet (PoE) for clean, single-cable data and power architecture. [
3 High-Fidelity Audio and Remote Authorization
Exert effortless control over structural building locks and visitor interactions. The terminal handles wideband G.722 and Opus audio codecs, paired with an upgraded 2W internal multimedia speaker and Acoustic Echo Cancellation (AEC), to establish clear, full-duplex conversations for one-click remote door opening.
Key Technical Specifications
- Operating System Environment: Android 9.0 Software Platform
- Visual Interface Screen: 10.1-Inch Color Capacitive Touch Panel (IPS Display); 1280×800 Resolution
- Wireless Network Infrastructure: Built-in Dual-Band Wi-Fi (2.4GHz / 5GHz Wireless)
- Hardwire Network Connection: 1 x 10/100 Mbps Self-Adaptive RJ45 Ethernet Interface
- Audio Engineering Standards: HD Voice Quality with AEC, G.722, and Opus Codecs; Onboard 2W Speaker
- Video Capture Decoding: Hardware Decoding up to 1080P @30fps; H.264 / H.265 (Optional)
- Peripheral Hardware Interfaces: 8 x Alarm Inputs, 1 x Embedded Relay, 1 x Short Circuit Input / 1 x Output, 1 x RS-485
- Power Delivery Options: 802.3af Power over Ethernet (PoE) or Local 12V/1A DC Power Input
- Chassis Build Dimensions: 247.96 mm x 156.96 mm x 25.6 mm Wall-Mounted Assembly
- Communication Infrastructure: Standard SIP 2.0 over secure UDP/TCP/TLS pathways
