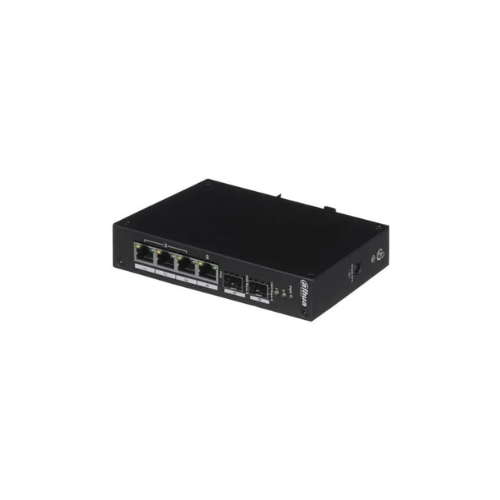

Dahua PFS3206-4P-96 4-Port PoE Unmanaged Switch
Key Features
Brand: Dahua
Two-layer unmanaged PoE switch
Cascade can be realized via SFP fiber port
MAC auto study and aging, MAC address list capacity is 8K
Support IEEE802.3af, IEEE802.3at, Hi-PoE standard
Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
Industrial wide temperature design
1 Year Warranty
Dahua PFS3206-4P-96 4-Port PoE Switch Complete Review and Setup Guide
The Dahua PFS3206-4P-96 is an industrial-grade Layer 2 hardened unmanaged network switch designed to provide rugged reliability and ultra-high power delivery in extreme environmental conditions. This guide covers its key features specifications deployment strategies and performance capabilities to help you optimize your business network.
As modern companies scale up their digital operations reliable high-power infrastructure becomes mandatory. The PFS3206-4P-96 addresses this by combining high-speed wireline delivery with advanced hardware resilience. It serves as a scalable solution for organizations experiencing sudden increases in high-draw device deployment and harsh physical installation demands.
This specific network switch acts as a central power and data distribution hub for hardware endpoints that rely heavily on uninterrupted connections in tough settings. By deploying this device network administrators can easily eliminate connectivity bottlenecks and energize specialized outdoor equipment. The system is built with a heavy-duty chassis to sustain intensive data loads making it an ideal choice for transitioning into fully hardened automated workflows.
This unmanaged hardened switch offers advanced physical hardware capabilities tailored for demanding commercial and industrial deployments.
-
- Plug and Play Operation: Requires no manual software programming configuration or licensing.
- Industrial Hardened Chassis: Operates flawlessly in extreme temperatures and high-humidity field enclosures.
- Hi-PoE Power Delivery: Features a specialized high-output port capable of running power-hungry devices.
- Fiber Uplink Interface: Includes an SFP optical port to sustain long-distance data transmissions back to a central server.
- Real-Time Power Indicators: Uses front panel LED status lights to show active power draw states clearly.
- Flexible Mounting Options: Supports standard DIN-rail clip snaps or traditional wall mount positioning.
Technical Specifications
Understanding the technical details helps determine proper power loading electrical setups and equipment compatibility.
-
- Media Interfaces: 1x 10-100-1000 Base-T port 3x 10-100 Base-T PoE ports and 2x 1000 Mbps SFP fiber interfaces.
- Total PoE Power Budget: Supplies up to 96W of total aggregate power across the copper network interfaces
- Heavy Duty Power Support: Complies with IEEE 8023af and 8023at standards with port one supporting high-draw Hi-PoE up to 60W.
- Switching Performance: Delivers a 68 Gbps non-blocking switching capacity with rapid packet forwarding performance.
- Lightning Protection Array: Features high-level common mode and differential mode surge protection built directly into the circuit blocks.
- Environmental Tolerance: Hardened component design certified to operate reliably in wide temperatures ranging from minus thirty to sixty-five degrees Celsius.
Management and Deployment Advantages
Dahua builds this unmanaged industrial device to maximize physical integration convenience and minimize manual field oversight.
No Software Maintenance
Because this hardware functions completely as an unmanaged layer 2 switch it lacks a localized web browser interface or internal operating system to update. This completely eliminates standard configuration vulnerabilities security risks and firmware patch schedules.
Automated Auto Negotiation
Each copper interface uses smart internal logic to instantly detect the specific operational connection speed and duplex parameters of any attached device. This ensures legacy electronics communicate cleanly alongside modern hardware setups.
Industrial Media Conversion
The dual SFP optical slot matrix allows the switch to function as a field-level media converter node. It aggregates localized copper connections from cameras or access points and bridges them onto high-speed fiber backbones seamlessly.
Ideal Use Cases
The rugged build multi-protocol power standards and optical uplink capabilities make this unit optimal for several distinct scenarios.
- Outdoor IP Surveillance: Feeds power and aggregates data streams from high-draw pan-tilt-zoom speed domes and thermal cameras smoothly.
- Traffic Monitoring Stations: Mounts inside roadside control cabinets to connect vehicle counting sensors and monitoring hardware reliably.
- Industrial Warehouse Yards: Links automated gate systems perimeter access control hardware and external wireless bridge dishes safely.
- Sprawling Enterprise Compounds: Connects remote security outposts or parking structures back to the main office network over long-distance fiber lines.
