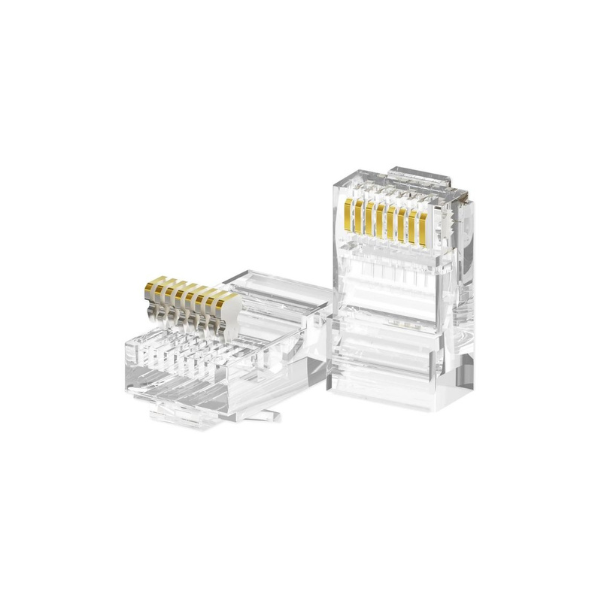

D-Link RJ45 Cat6 Connectors 100 pcs
Key Features
Brand: D-Link
Product Type: Cable Connector
RJ45 modular plug supports 4 twisted pairs, meet wiring scheme
Housing: polycarbonate, 94V-2, transparent color
Contact terminal: phosphor bronze
Finished: 50 micro-inch gold plating, over 50 micro inch Nickel plated on contact area
Operating temperature: -40°C to 80°C
Terminates 24-26 AWG stranded wires, wiring scheme T568A/T568B
1 Year Warranty
D-Link RJ45 Cat6 Connectors 100 pcs: The Premium Choice for Flawless Gigabit Network Terminations
Building a dependable, high-speed wired network involves more than just selecting high-end switches and premium bulk cable. The terminating endpoints dictate your network’s long-term stability and signal purity. The D-Link RJ45 Cat6 Connectors 100 pcs pack provides a trade-grade, reliable solution engineered specifically for high-density patch cord construction and structured building installations. By pairing an unshielded twisted pair (UTP) modular plug layout with high-durability internal contacts, this pack eliminates packet dropouts and maintains data integrity across your entire infrastructure.
Why Choose D-Link RJ45 Cat6 Connectors
D-Link modular plugs are built explicitly to eliminate the structural failures, loose seating, and cross-talk interference common with generic bulk connectors.
50-Micron Gold-Plated Contacts
Wired network data transmission depends directly on the metal pins within the plug. These D-Link modular connectors incorporate heavy-duty 50-micron gold plating over durable phosphor bronze contacts. This high-spec finish offers superior defenses against rust and oxidation while optimizing copper conductivity, ensuring consistent gigabit speeds for years.
Three-Prong Terminal Architecture
Standard budget plugs use basic two-prong metal teeth that struggle to bite tightly into modern thick cable cores. D-Link solves this by using an advanced three-prong contact layout. When crimped, the pins wrap securely around both solid and stranded copper wires, guaranteeing a rigid, vibration-resistant connection that will not pull loose over time.
Transparent Polycarbonate Form Factor
Crafted from high-grade, crystal-clear polycarbonate plastic, these connectors make manual installation highly efficient. The transparent body lets installers visually verify that all eight color-coded inner wires have reached the tip of the plug before clamping down with a crimping tool, dramatically cutting down on wasted connections and mistakes.
Optimized for High-Bandwidth Category 6 Cables
These modular plugs are carefully engineered to match the strict mechanical demands of true Cat6 networking setups:
- Sturdy Internal Wire Loading: The inner wire guide alignment easily accommodates thicker 23 AWG to 24 AWG insulated wires, matching the increased wire diameter typical of standard high-performance Cat6 cables.
- Minimized Near-End Crosstalk (NEXT): The tight internal wire slot spacing keeps wire twists intact right up to the termination point, minimizing signal leakage and packet dropouts.
- Snagless Resilient Retention Tab: Features a highly flexible, durable top locking clip that can bend repeatedly without snapping, keeping your patch cords locked securely into switch ports and wall plates.
Technical Specifications Table
| Metric Feature | Specification Detail |
|---|---|
| Product Type | RJ-45 Modular Plug (8P8C Configuration) |
| Cable Compatibility | Category 6 (Cat6) UTP Lines |
| Supported Wire Gauges | 23 AWG to 24 AWG (Solid and Stranded Copper) |
| Contact Plating | 50-Micron Gold Plating over Phosphor Bronze |
| Chassis Material | Clear Flame-Retardant Polycarbonate Plastic |
| Housing Style | Unshielded (UTP Type) |
| Quantity Count | 100 Pieces per Box / Jar |
Frequently Asked Questions (FAQs)
Can I crimp these Cat6 connectors onto an older Cat5e network cable?
Yes. These connectors are backward compatible and can safely clamp onto legacy Cat5e cables. However, because Cat5e cables feature slightly thinner inner insulation sleeves, you must ensure the individual wires are fed straight to the tip to guarantee the three-prong contacts bite down correctly.
What is the advantage of 50-micron gold plating over lower ratings?
Many cheaper generic connectors use thin 3-micron or 6-micron flash gold plating, which wears away rapidly after a few plug-in cycles. A heavy 50-micron gold coating provides maximum thickness, ensuring the connector can handle frequent re-patching inside server rooms without losing signal performance.
