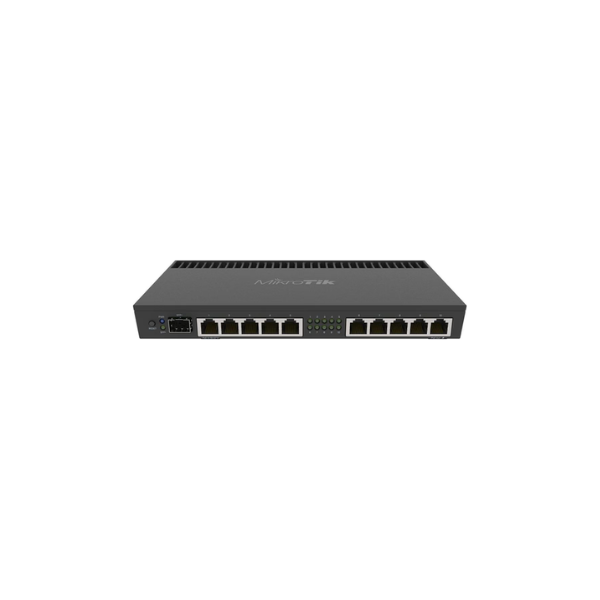

MikroTik RB4011 Ethernet 10-Port Gigabit Router-(RB4011iGS-RM)
Key Features
Brand: MikroTik
Amazingly powerful routers with ten Gigabit Ethernet ports
SFP+ 10Gbps interface and IPsec hardware acceleration
Quad-core 1.4GHz CPU and 1GB of RAM for high-performance network traffic handling and advanced features.
Supports advanced routing protocols like OSPF, BGP, and MPLS, making it suitable for complex network setups and ISPs.
Ethernet model includes two rackmount ears that will securely fasten the unit in a standard 1U rack space
Dimensions: 228 x 120 x 30 mm; PoE in: Passive PoE; PoE in input Voltage: 18-57 V; Max power consumption: 33 W
User-friendly interface with MikroTik RouterOS
1 Year Warranty
MikroTik RB4011 Ethernet 10-Port Gigabit Router (RB4011iGS-RM) Review
The MikroTik RB4011 Ethernet 10-Port Gigabit Router (RB4011iGS-RM) stands as one of the most powerful, cost-effective routing options available for small-to-medium enterprises, ISPs, and advanced home labs. Driven by a formidable hardware suite and managed by the industry-renowned RouterOS, this rackmount unit provides massive throughput potential without breaking the budget.
Whether you need to manage complex firewall rules, host multiple VPN tunnels, or configure strict bandwidth management policies, the RB4011 is architected to handle the load cleanly and reliably.
Enterprise-Grade Hardware Architecture
At the core of the MikroTik RB4011 Ethernet 10-Port Gigabit Router is an Annapurna Labs AL21400 quad-core ARM processor ticking at 1.4 GHz. This enterprise-grade chip is paired with 1 GB of RAM and 512 MB of NAND storage, giving it ample overhead to store large routing tables and run sophisticated applications.
The physical configuration is optimized for density, featuring:
- 10x Gigabit Ethernet Ports: Separated into two switch groups utilizing the reliable RTL8367SB switch chip model.
- 1x 10G SFP+ Cage: Enables blistering 10 Gbps fiber uplink connectivity to Core switches, NAS units, or ISP termination links.
- Hardware IPsec Acceleration: Offloads computational cryptography to the silicon, enabling high-speed encrypted VPN tunnels without pinning the CPU.
- 1U Matte-Black Metal Enclosure: Heavy-duty build complete with detachable rackmount ears for server cabinet integration.
Technical Specifications Checklist
When evaluating the RB4011iGS-RM specs, data accuracy is essential for proper infrastructure planning. Below is the official technical breakdown:
| Feature | Specification Details |
|---|---|
| Product Code | RB4011iGS+RM |
| CPU Architecture | ARM 32-bit (Quad-core AL21400 1.4 GHz) |
| Memory & Storage | 1 GB RAM / 512 MB NAND |
| Ethernet Interfaces | 10x 10/100/1000 Mbps RJ45 Ports |
| Fiber Interface | 1x 10G SFP+ Port |
| Operating System | RouterOS (Level 5 License) |
| Power Inputs | Dual Redundancy (DC Jack & Passive PoE-In 18-57V) |
| PoE Out Capabilities | Passive PoE out on Ether10 (Up to 57V) |
| Physical Dimensions | 228 mm x 120 mm x 30 mm |
Advanced Capabilities with RouterOS v7
The underlying hardware is only half the story. Running on a Level 5 RouterOS license, the RB4011 handles high-level operations that typically require license subscriptions on proprietary platforms.
Bandwidth Management & Queues
Network administrators can deploy advanced traffic shaping protocols using Simple Queues, Queue Trees, and Per-Connection Queueing (PCQ). This allows ISPs and hospitality hotspots to evenly distribute bandwidth or enforce strict tiers among hundreds of active users.
Secure Networking & VLANs
With standard internal hardware configurations, the system seamlessly establishes inter-VLAN routing, keeping corporate departments isolated and secure. Additionally, full integration for modern VPN protocols like WireGuard, OSPF, and BGP routing means configuring secure, redundant multi-site networks is streamlined.
Key Limitations to Consider Before Buying
While the MikroTik RB4011 Ethernet 10-Port Gigabit Router is immensely versatile, a few deployment considerations should be factored into your layout design:
- No Built-In Wi-Fi: The RB4011iGS-RM is an entirely wired routing system. Wireless connectivity requires deploying dedicated external access points across your facility.
- Passive PoE Constraints: The PoE functionality operates on Passive PoE protocols rather than standard 802.3af/at. Double-check equipment compatibility before driving downstream devices via Port 10.
- Thermals: The fanless cooling relies on its robust chassis heatsink. Ensure it is mounted in a standard 1U environment with adequate open airflow to protect components during peak workloads.
