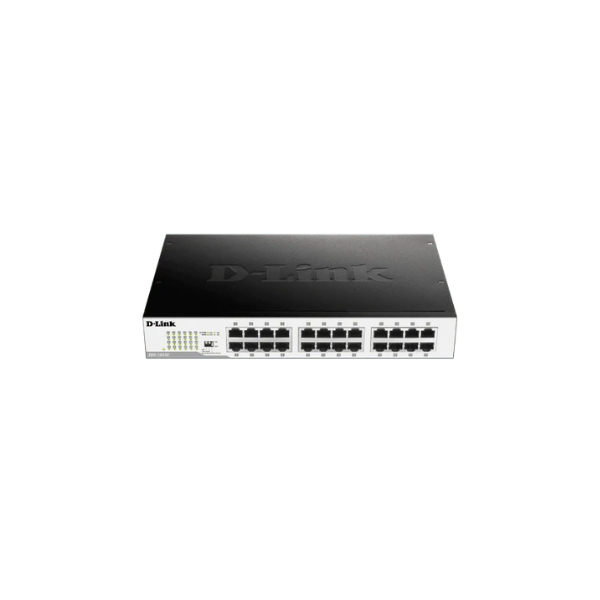

D-Link DGS-1024D/B 24-Port Unmanaged Gigabit Switch
Key Features
Brand: D-Link
24 auto-sensing 10/100/1000 Mbps ports for high-speed connectivity
Up to 2000 Mbps full-duplex per port for fast data transfers
Energy Efficient Ethernet (EEE) reduces power usage during idle times
Fanless design for silent operation – perfect for quiet office environments
Robust metal casing built to last in demanding conditions
Auto MDI/MDIX – no need for crossover cables
Plug-and-play setup – no configuration required
Supports jumbo frames up to 10,000 bytes for large file transfers
1 Year Warranty
D-Link DGS-1024D 24-Port Unmanaged Gigabit Switch: Seamless, High-Speed Business Networking
Modern business environments require a high-density wired infrastructure capable of handling massive bandwidth demands without slowdowns. The D-Link DGS-1024D 24-Port Unmanaged Gigabit Switch offers a premium, economical solution to upgrade or expand your corporate local area network (LAN). Bringing full Gigabit speeds to 24 dedicated ports, this desktop and rackmountable hardware eliminates network bottlenecks to keep your team fully productive.
Why Choose the D-Link DGS-1024D Gigabit Switch
The D-Link DGS-1024D is engineered for deployments where maximum data throughput and total simplicity are the top priorities. It removes the steep learning curve of managed enterprise equipment while offering elite physical durability and performance.
High-Speed Gigabit Connectivity
Every single port on the D-Link DGS-1024D provides true 10/100/1000 Mbps networking capability. With total data transfer rates reaching up to 2000 Mbps per port in full-duplex mode, it delivers the bandwidth necessary for immediate local file transfers, graphic rendering, heavy database queries, and seamless cloud synchronization.
Immediate Plug-and-Play Setup
Deploying the D-Link DGS-1024D involves zero configurations, administrative commands, or specialized IT software. You simply unbox the hardware, secure the power cable, and connect your lines. The intelligent auto-sensing ports automatically read and negotiate speeds for connected devices, while built-in Auto MDI/MDIX crossover detection handles configuration without requiring complex crossover patch cables.
Heavy-Duty, Fanless Metal Architecture
Designed to function in noise-sensitive workspaces, standard offices, or packed server closets, the D-Link DGS-1024D features a smart fanless design. It functions in absolute silence while relying on passive heat dissipation via its rugged, industrial metal chassis. This sturdy frame offers enhanced physical defense and ensures a long, dependable operational life.
Smart Energy Savings via D-Link Green Technology
The D-Link DGS-1024D integrates automatic power management protocols to drop operational energy costs and lower your carbon footprint without sacrificing raw network speed.
- IEEE 802.3az EEE Standard: Constantly watches network activity, switching individual ports into an idle, low-power state when data transmission halts.
- Link Status Analytics: Reads if an attached desktop, server, or peripheral is powered off or disconnected, cutting off current to that specific port.
- Cable Length Power Scaling: Detects the physical distance of the attached Ethernet cable, adjusting power output levels to save energy on shorter cable runs.
Ideal Deployment Scenarios
With its combination of massive port capacity and flexible 1U rackmounting support, the D-Link DGS-1024D scales effortlessly across multiple environments:
- Growing Corporate Offices: Connect up to 24 separate hardware pieces—including employee workstations, network printers, VoIP phone structures, and local servers.
- Data-Heavy Creative Teams: Safely link high-end editing computers directly to localized Network Attached Storage (NAS) units for real-time 4K/8K video workflows.
- High-Density Surveillance Hubs: Aggregate data lines from multiple high-definition IP security cameras and link them reliably back to central Network Video Recorders (NVRs).
Technical Specifications Table
| Metric Feature | Specification Detail |
|---|---|
| Port Configuration | 24 x 10/100/1000 Mbps Gigabit Ethernet RJ-45 Ports |
| Switching Capacity | 48 Gbps |
| MAC Address Table | Up to 8,000 entries |
| Network Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3az |
| Data Transfer Rates | Gigabit Ethernet: Up to 2000 Mbps (Full-Duplex) |
| Transmission Method | Store-and-Forward |
| Form Factor | Desktop / 1U Rackmountable (Brackets included) |
| Acoustic Noise | 0 dB Fanless Silent Operation |
Frequently Asked Questions (FAQs)
What is the switching capacity of the D-Link DGS-1024D?
The switch features a non-blocking 48 Gbps switching capacity. This ensures that all 24 ports can transmit and receive data at full Gigabit speeds simultaneously without experiencing internal traffic limits.
Can I install this switch into a standard 19-inch rack enclosure?
Yes. The D-Link DGS-1024D is built with a dual-purpose physical form factor. It sits neatly on top of an office desk or can be mounted safely into standard 1U server racks using the provided metal brackets and hardware.
